VHH Affinity Chromatography Resin: From Ligand Design to Scalable Purification

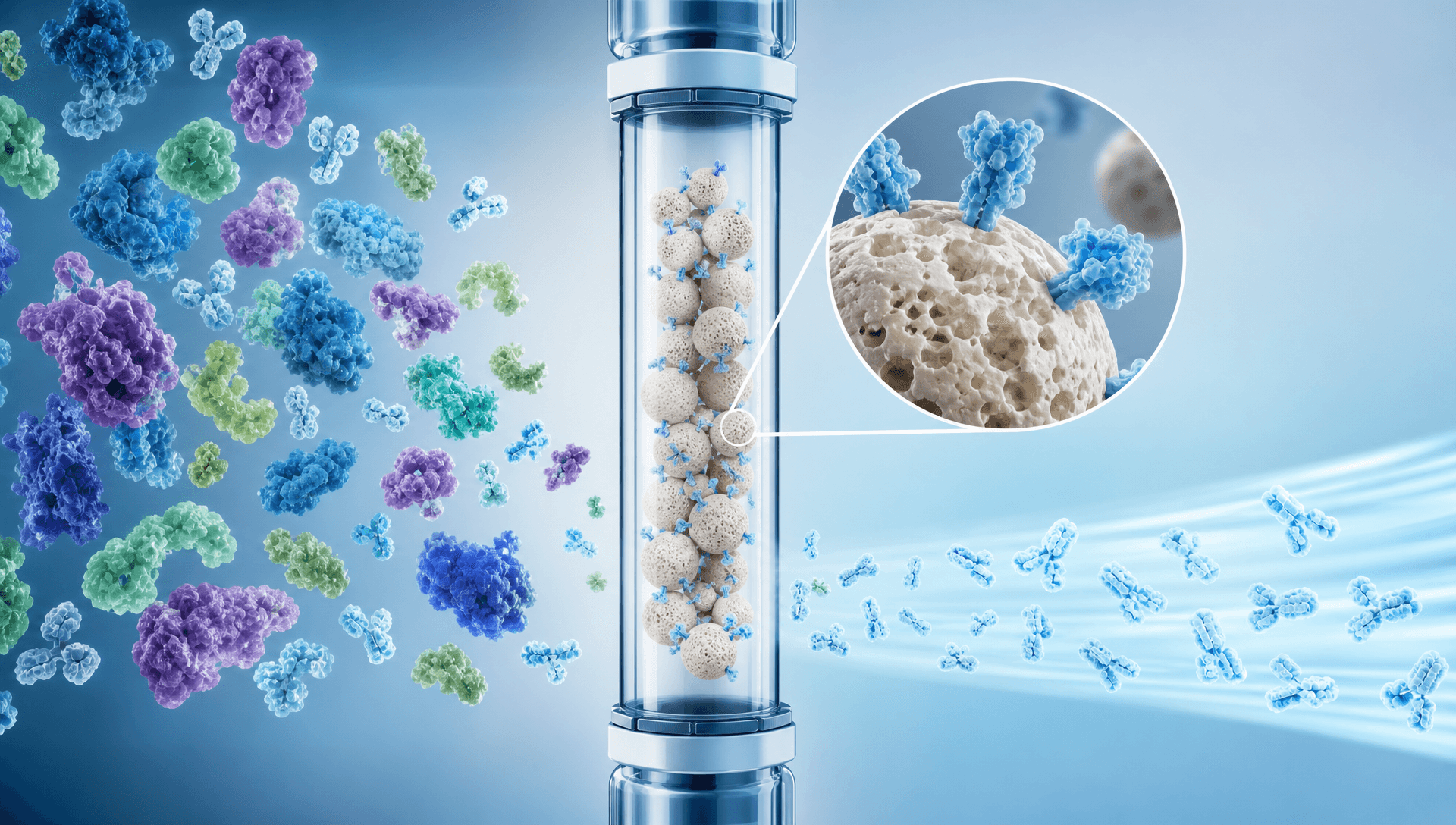

Figure 1 | Porous beads provide the transport scaffold, while immobilized ligands provide molecular selectivity. Both determine capture performance and scalability.

The first decision: is VHH the ligand or the product?

The phrase “VHH resin” hides two fundamentally different process questions.

Use case A: VHH is the immobilized affinity ligand

A target-specific VHH is produced, characterized, and coupled to a porous support. The resulting VHH affinity resin captures another protein or a selected molecular form from a complex feed. Peer-reviewed work has shown that purpose-selected VHH ligands can discriminate between closely related product variants. That result demonstrates design potential, not a universal property of every VHH ligand .

Use case B: VHH is the product being purified

Here, the relevant medium depends on the construct. Does the VHH contain an affinity tag or an additional recognizable domain? What are its charge, hydrophobicity, oligomerization behavior, and major process impurities? Many antibody fragments lack the Fc region used in established full-length antibody capture schemes, so their purification cannot be chosen by analogy alone. Affinity capture, ion exchange, hydrophobic interaction, mixed-mode chromatography, and size exclusion may all have roles.

This distinction should be documented before any VHH purification resin is screened.

Why can a VHH function as an affinity ligand?

A VHH is the monomeric variable domain of a camelid heavy-chain-only antibody. A single domain is less than one-tenth the size of a conventional four-chain antibody while retaining specific molecular recognition [1]. Its compact architecture, expression potential, and engineerable binding surface make it an attractive ligand format. However, “small” does not automatically mean “high capacity,” “fast transport,” or “easy elution.” Those outcomes emerge from the complete resin system.

Figure 2 | A target binds the immobilized VHH during loading, impurities are removed during washing, and controlled condition changes release the product.

Three interfaces govern performance

1. Ligand–target interface. It determines binding, selectivity among homologues or conformers, and the conditions required for release.

2. Ligand–matrix interface. Coupling site, spacer chemistry, ligand density, and orientation affect accessibility. Random coupling can mask a binding surface.

3. Pore–fluid interface. Particle size, pore structure, crosslinking, viscosity, and flow determine mass transfer and pressure.

A dissociation constant measured in solution is therefore not enough to qualify VHH chromatography media.

Four gates from screening to scale-up

Gate 1: demonstrate selectivity, not merely binding

Screening should include the target, major host-related impurities, close homologues, and critical product variants. A static test with purified target alone can overestimate performance in a real feed. In one published system, a VHH recognized a calcium-dependent target conformation and enabled release by changing ion conditions, illustrating that a mild, mechanism-based elution route can sometimes be engineered . The exact conditions were target-specific and should not be copied as a generic recipe.

Gate 2: replace static capacity with dynamic evidence

Static binding capacity describes equilibrium potential. Dynamic binding capacity (DBC) describes capture at a defined residence time and breakthrough criterion. A meaningful resin comparison should use realistic feed concentration, viscosity, and temperature, and record:

• DBC and the breakthrough curve;

• recovery and elution pool volume;

• clearance of host-cell proteins, nucleic acids, aggregates, and critical variants;

• pressure–flow behavior;

• ligand leakage and product carryover.

Acceptance limits must come from the product profile and process stage; no universal threshold applies.

Gate 3: establish a reversible elution window

Affinity capture must solve both “bind” and “release.” Acid, salt, competitive molecules, chelators, or combined solvents may weaken an interaction. Each condition must be evaluated against product activity, aggregation, chemical modification, and the burden of subsequent buffer exchange. The best elution is not the harshest one; it is the mildest condition that achieves acceptable recovery and impurity discrimination.

Gate 4: verify cleaning, regeneration, and lifetime

Cleaning-in-place must remove retained contaminants without unacceptable loss of ligand activity or matrix integrity. Do not infer cleaning tolerance from the general stability of the VHH format. Multi-cycle studies should track capacity retention, selectivity drift, leakage, pressure, carryover, and microbial control. Storage conditions and maximum cycle count require project-specific evidence.

A VHH affinity chromatography resin development workflow

Figure 3 | Resin selection belongs within the complete downstream workflow: clarification, capture, washing, elution, polishing, and quality analysis.

1. Define the product and impurity landscape

Document target identity, construct, expression host, feed composition, expected yield, critical impurities, and critical quality attributes. If the VHH itself is the product, confirm whether a tag remains, whether multimers form, and whether clipping or oxidation is plausible.

2. Build an evidence–prediction–experiment loop

MatwingsVenus™（晓鹜™） can support retrieval of prior literature and database evidence for ligands, domains, and variants, while keeping measured, predicted, and unknown information distinct. Where direct evidence is missing, MatwingsVenus™（晓鹜™） can, with user approval, support functional-site prediction to identify regions that should not be disrupted by immobilization or aggressive engineering. Predictions still require experimental validation.

A concrete task → output → next step chain keeps this work actionable: submit the candidate sequence and process boundaries, receive an evidence inventory and risk map, then test the prioritized coupling and elution conditions with representative feed.

Task: assess a candidate VHH ligand for affinity capture
Input: VHH sequence, target identity, expression system, cleaning and elution boundaries
Output: evidence inventory, risk sites, experimental matrix, and pre-scale-up gates
Next step: test prioritized coupling and elution conditions with representative feed

3. Use a small design space instead of one-factor trial and error

Combine ligand density, coupling orientation, loading pH and conductivity, residence time, wash stringency, and elution mode in a compact design of experiments. MatwingsVenus™（晓鹜™） can connect prior evidence with protein-function and engineering analyses to generate testable hypotheses. It does not replace resin screening, chromatography experiments, or analytical testing.

4. Assess scale-up and supply documentation

Scale-up must address bed height, linear velocity, pressure, packing reproducibility, lot consistency, and fit-for-purpose documentation—not residence time alone. Request the ligand origin and coupling format, recommended operating range, cleaning compatibility, leakage assay, storage conditions, and lot-release information. Product catalogs and procurement information can serve as early leads, but quality documentation and testing with representative feed remain the decision basis.

Common mistakes

• Higher affinity always means a better resin. Excessively tight binding can make elution difficult or damaging.

• A stable ligand guarantees cleaning resistance. The coupling bond, spacer, and matrix may still limit lifetime.

• A small ligand guarantees rapid mass transfer. Pore structure, viscosity, and target size remain important.

• One successful run proves scalability. Cycling, impurity clearance, packing, and analytical methods need independent verification.

• Every “VHH affinity resin” purifies VHH. Many such materials instead use VHH as the ligand to capture a different target.

FAQ

What distinguishes a VHH affinity resin from another affinity medium?

The primary distinction is the ligand: a target-specific VHH supplies the recognition function. Final performance still depends on the matrix, immobilization chemistry, and operating window.

Can VHH chromatography media separate protein variants?

Selected VHH ligands have experimentally separated closely related product forms . This is a developable capability, not a default feature. It must be confirmed with the actual variants and feed.

Is affinity chromatography mandatory when VHH is the product?

No. A tagged construct may support tag-based affinity capture. An untagged construct may require ion exchange or another combination chosen from charge, hydrophobicity, size, and impurity data.

How should two VHH purification resins be compared?

Use the same representative feed and compare DBC at the same residence time and breakthrough definition, then assess recovery, purity, critical impurity clearance, elution mildness, pressure–flow behavior, ligand leakage, and multi-cycle retention. Vendor static-capacity claims alone are insufficient.

Conclusion

A sound VHH resin strategy begins by deciding whether VHH is the ligand or the product. Selection should then connect molecular recognition with reversible elution, dynamic transport, cleaning, and scale-up evidence. A VHH affinity chromatography resin can translate programmable recognition into a powerful capture step, but only representative-feed studies and multi-cycle data can establish process fitness. MatwingsVenus™（晓鹜™） can organize evidence, separate predictions from measurements, and define testable hypotheses; laboratory and quality data remain decisive.
